Industrial Heavy Duty Flooring

Factories · Warehouses · Automotive · Global

Industrial Heavy
Duty Flooring
Built to Perform.

UK-engineered flooring systems for high-load industrial environments. Forklift-rated, chemical-resistant, and fast to install — delivered to facilities worldwide.

Forklift Rated Chemical Resistant Fast Install Impact Resistant Certified Safe

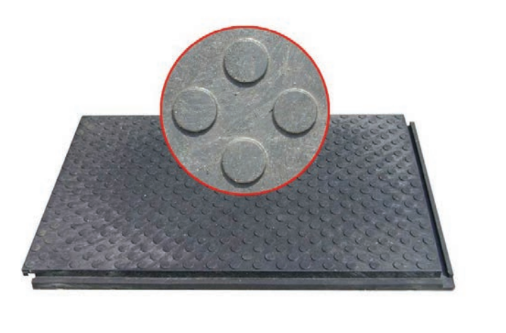

Industrial flooring tile close-up
3 Systems TPR · RES · ECP
Trusted by industry. Certified to standard.
CertifiedISO 9001Quality 2015
CompliantEN 13553PVC Flooring
FireEN 13501Cfl-s1
SlipR9–R12DIN 51130
MarkedCE / UKCAConformity
NORTHGATElogistics APEXmotors VANTAGEfoods MERIDIANsteel HALTONDC
Certification marks shown are the standards our systems are specified to meet. Client logos are placeholders — supply your real client logos to swap in.
🏗️
Heavy Load Bearing
Fast Installation
🧪
Chemical Resistant
🛡️
Fire Rated
♻️
Sustainable Options
🔊
Acoustic Damping
🎨
Custom Colours
🌍
Global Delivery
Three heavy duty flooring systems — choose by load, chemical & install profile. PVC (TPR) · Recycled (RES) · Rubber (ECP) — each with multiple tile designs & full technical data.
See Product Options ↓
Product Systems

Select your flooring system

Pick a material to see the available tile designs, full specifications, and technical data — cleaning, installation, sustainability and FAQs.

TPR PVC Industrial Flooring
A · TPR

PVC — Thermo-Plastic Resin

The most versatile heavy duty system. Impact-resistant, hygienic, and engineered for fast modular installation — widely specified for manufacturing lines, cleanrooms, and precision environments.

Stable, impact-resistant surface under daily wear
Tool-free modular install — no adhesives, no curing
Food-safe & pharmaceutical grade available
Available Tile Designs — TPR
TPR Diamond 7mm
TPR Diamond 7mm
Thickness
7 mm
Wear Layer
0.70 mm
Weight
9 kg/m²
Size
500×500
PDF Data Sheet
TPR Coin 7mm
TPR Coin 7mm
Thickness
7 mm
Wear Layer
0.70 mm
Weight
9 kg/m²
Size
500×500
PDF Data Sheet
TPR Smooth 5mm
TPR Smooth 5mm
Thickness
5 mm
Wear Layer
0.55 mm
Weight
7 kg/m²
Size
500×500
PDF Data Sheet
TPR HD 11mm
TPR Heavy Duty 11mm
Thickness
11 mm
Wear Layer
0.70 mm
Weight
14 kg/m²
Size
500×500
PDF Data Sheet
Technical Data — TPR
Technical Specification+
  • Tile size: 500 × 500 mm
  • Thickness: 5 / 7 / 11 mm options
  • Load rating: up to 7,000 kg/m²
  • Compression resistance: EN 826
  • Surface texture: diamond / coin / smooth
  • Edge system: loop-lock / dovetail
Cleaning & Maintenance+
  • Compatible with standard industrial cleaning equipment
  • Sweep, mop, or pressure wash
  • Resistant to oils, fuels & common industrial chemicals
  • Individual tiles replaceable without full floor removal
Installation+
  • Tool-free modular assembly — no adhesives required
  • Loose lay or interlocking click system
  • Installable over existing floor surfaces
  • Phased install — facility stays live
  • Typical speed: 50–100 m²/hour per crew
Sustainability+
  • Recyclable at end of product life
  • Low-VOC indoor air quality compliant
  • Reusable — modular tiles recoverable & redeployable
  • Reduced carbon footprint vs. liquid-applied alternatives
FAQs+
  • Can it be installed over concrete? Yes — loose lay directly onto clean, level concrete.
  • Suitable for forklift traffic? Yes — rated up to 7,000 kg/m².
  • How long does installation take? A typical 500m² floor: 1–2 days.
  • Custom colours? Yes — RAL & Pantone matching on request.
RES Recycled Eco-Strength Flooring
B · RES

Recycled Eco-Strength

Engineered for logistics-heavy environments where forklift performance, surface stability, and sustainability are all priorities. Modular and fully reusable — ideal where layouts evolve.

High recycled material content — ESG-ready
Forklift-rated surface stability
Modular & fully redeployable
Available Tile Designs — RES
RES Studded 12mm
RES Studded 12mm
Thickness
12 mm
Profile
Studded
Weight
18 kg/m²
Size
500×500
PDF Data Sheet
RES Flat 10mm
RES Flat 10mm
Thickness
10 mm
Profile
Flat
Weight
16 kg/m²
Size
600×600
PDF Data Sheet
RES Drainage Tile
RES Drainage Tile
Thickness
20 mm
Profile
Open Grid
Weight
14 kg/m²
Size
500×500
PDF Data Sheet
RES Heavy Duty 16mm
RES Heavy Duty 16mm
Thickness
16 mm
Profile
Studded
Weight
22 kg/m²
Size
500×500
PDF Data Sheet
Technical Data — RES
Technical Specification+
  • Recycled rubber/polymer composite construction
  • Tile size: 500 × 500 / 600 × 600 mm
  • Forklift traffic rated
  • High compressive strength — EN 826 tested
  • Studded or flat surface profile
Cleaning & Maintenance+
  • Sweep or pressure wash — fully water resistant
  • Compatible with industrial floor scrubbers
  • Individual tile replacement without full removal
  • High resistance to oils, fuels & chemicals
Installation+
  • Loose lay — no adhesive or fixings needed
  • Interlocking or butt-joint edge options
  • Reconfigurable as facility layouts change
  • Suitable for live operational environments
Sustainability+
  • High recycled material content — supports ESG reporting
  • Fully reusable & redeployable across projects
  • Circular economy compatible — take-back available
  • Low-VOC compliant
FAQs+
  • Suitable for outdoor use? Select variants are UV-stable for semi-exposed areas.
  • Can layouts be reconfigured? Yes — tiles lift, move & relay.
  • Load rating? Rated for industrial forklifts & pallet trucks.
ECP Rubber Flooring
C · ECP

Rubber — Elastomer Cross-Linked Polymer

Engineered for the most demanding environments — impact, vibration, oils, fuels & aggressive substances. Superior shock absorption, anti-fatigue performance, and long-term chemical resilience.

Excellent shock absorption & vibration damping
Chemical resilience — oils, fuels, solvents
Ideal for automotive, hangars, chemical processing
Available Tile Designs — ECP
ECP Cheq Plate Low Profile
ECP Cheq Plate — Low Profile
Thickness
6 mm
Wear Layer
2.7 mm
Weight
8 kg/m²
Size
500×500
PDF Data Sheet
ECP Textured
ECP Heavy Duty — Textured
Thickness
8 mm
Wear Layer
3.0 mm
Weight
11 kg/m²
Size
500×500
PDF Data Sheet
ECP Cheq Plate 7mm
ECP Cheq Plate 7mm
Thickness
7 mm
Wear Layer
2.9 mm
Weight
10 kg/m²
Size
500×500
PDF Data Sheet
ECP Drainage Tile
ECP Drainage Tile
Thickness
18 mm
Profile
Open Grid
Weight
13 kg/m²
Size
500×500
PDF Data Sheet
Technical Data — ECP
Technical Specification+
  • Elastomer cross-linked polymer construction
  • Excellent impact & vibration absorption
  • Shore hardness: 50–70 Shore A
  • Slip resistance: R9–R12 by profile
  • Sheet or tile format
Cleaning & Maintenance+
  • Resistant to oils, fuels, hydraulic fluid & cleaning agents
  • Pressure wash or scrubber compatible
  • Non-porous — prevents bacterial harbourage
  • Long service life, minimal maintenance
Installation+
  • Loose lay or adhesive-bonded options
  • Over concrete & existing floors
  • Sheet or tile format for flexibility
  • Compatible with drainage channels & floor features
Sustainability+
  • Long lifecycle reduces replacement frequency
  • Recyclable rubber content
  • Indoor air quality compliant
FAQs+
  • Suitable for automotive workshops? Yes — highly resistant to oil, fuel & chemical spills.
  • Does it reduce noise? Yes — significant impact sound & vibration damping.
  • Heavy machinery? Yes — rated for heavy static & dynamic loads.
Performance

Engineered for the most demanding environments.

Heavy loads
Structural Performance

Built for Heavy Loads and High Impact.

Engineered for maximum load-bearing capacity — from static machinery to dynamic forklift traffic. Each system is specified, installed, and warranted for its exact application.

High load bearing — up to 7,000 kg/m²
Span strength & deflection control for uneven bases
Stability under forklifts, crowds & machinery
Anti-flex — edge locking integrity maintained
Surface engineering
Surface Engineering

Surface finish that works as hard as the floor.

Texture engineered for grip, hygiene, and finish — from diamond patterns to smooth pharmaceutical-grade surfaces, designed around real-world conditions.

R9–R12 slip resistance ratings available
UV-stable — no fading under industrial lighting
Anti-stain coatings for food & beverage
Print-grade finishes for branded floors
Acoustic comfort
Acoustic & Comfort

Underfoot comfort for long-duration operations.

Anti-fatigue performance reduces operator fatigue in standing zones. Impact sound damping & vibration absorption protect workers and sensitive equipment.

Impact sound reduction — footfall damping
Vibration absorption — machinery & events
Anti-fatigue ergonomics for standing zones
Thermal insulation variant available
Compliance, Safety & Certifications

Certified for the environments that need it most.

In procurement, compliance is often pass/fail. Our systems are specified to meet the certifications your venue, insurer, or client requires — before installation begins.

🔥
Fire Rating
Certified to fire performance standards for UK & EU industrial facilities — unlocking venue & insurance approval.
EN 13501Cfl-s1Bfl-s1
🦺
Slip Resistance
Tested ratings to protect workers in wet, oily & high-traffic zones. Required by health & safety audits.
R9R10R11R12
Accessibility
Wheelchair-friendly gradients, edge transitions & no trip hazards — fully accessible across all systems.
ADABS 8300
📋
PVC / TPR Standards
Full certification suite for TPR/PVC systems across all key test categories.
EN 13553EN 649EN 13845
🌿
Environmental
Low-VOC indoor air quality compliance & sustainability certs to support ESG reporting & tenders.
Low-VOCREACHRoHS
⚙️
RES & ECP Standards
Certified rubber & recycled polymer systems meeting international standards for industrial use.
EN 1817ASTM F970ISO 6945
Logistics & Operations

Speed of delivery. Minimal disruption.

Beyond fast installation — full operational efficiency from transport to handover. UK-based specialists with global project delivery.

50+
m² per hour
Typical install rate per crew — tool-free, no adhesives, no curing.
1–2
Day turnaround
Typical 500m² floor completed within 1–2 operational days.
Live
Phased install
Installed in operational phases — facility stays live.
0
Adhesives needed
Loose lay & interlocking — no chemical fixings, no specialist trades.
UK
Based specialists
Single point of contact from spec to global delivery.
🌍
Global delivery
International project delivery to facilities worldwide.
Applications

Where heavy duty flooring is specified.

Manufacturing
Manufacturing & Production

Manufacturing & Production Facilities

Production lines, fixed equipment, and constant traffic demand flooring that supports continuous mechanical activity without failure.

Production lines & plant flooring
Toolroom & precision workshops
Cleanroom & controlled environments
Heavy machinery & static load zones
Warehousing
Warehousing & Logistics

Warehousing, Storage & Distribution

Sustained forklift traffic, pallet movement & racking loads demand flooring that resists wear, deformation & impact across traffic routes.

Distribution centres & storage aisles
Loading bays & dock leveller zones
Cold storage compatible variants
High-throughput logistics operations
Automotive
Automotive & Workshops

Workshops & Automotive Environments

Oils, fuels & cleaning agents combined with vehicle weight demand chemical resilience, slip resistance & structural performance in equal measure.

Automotive workshops & service centres
Aircraft hangars & MRO facilities
Vehicle inspection & MOT lanes
Chemical processing environments
Colours & Designs

Standard palette. Bespoke on request.

Zone, mix & match to support 5S colour coding, traffic routing, or brand-led floor projects. Bespoke RAL and Pantone matching available.

RAL 9003White
RAL 1013Pearl White
RAL 7035Light Grey
RAL 7036Platinum
RAL 7015Slate Grey
RAL 7016Anthracite
RAL 9005Black
RAL 5010Flower Blue
RAL 5002Ultramarine
RAL 6002Leaf Green
RAL 6005Moss Green
RAL 2008Bright Orange
RAL 1017Saffron
RAL 3002Signal Red
RAL 3003Ruby Red
RAL 8016Chestnut
RAL 7045Tele Grey
RAL 7024Graphite
Custom graphics & markings: Two routes — Water-jet cut inlay (CNC precision-edged graphics, permanent, flush, forklift-rated for life) and Digital print finish (UV-cured under a wear-layer — full-colour brand artwork, wayfinding, showroom-grade). Both warranted for the life of the floor.

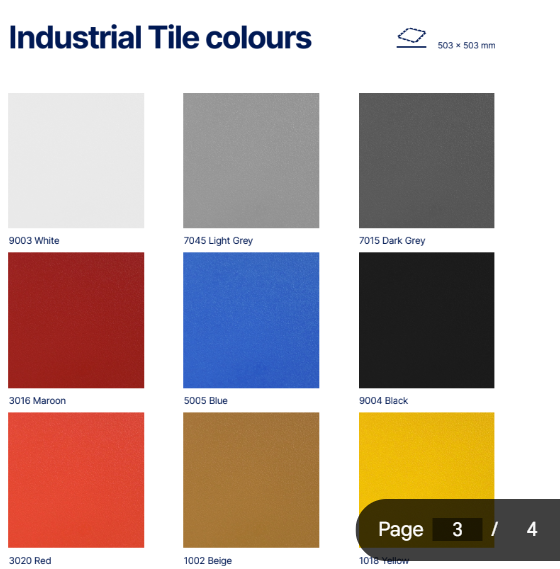

Industrial tile colour range

Speak to a flooring specialist.

Tell us your facility type, floor area and timeline — we’ll recommend the right system and provide a detailed specification & quote. UK-based, global delivery.

Get a Specification & Quote

Tell us about your facility — we’ll recommend the right system and respond fast.
